4 separate enclosures
- Occupies up to 4 host ports or a hub
- Typically passive cooling only
- Often limited to USB 10Gbps class speeds
- No clean software RAID workflow across boxes
- Typical cost: about $59 x 4
QuadDrive USB4 NVMe enclosure
Build the external SSD system your work keeps asking for.
Build a fast, expandable external SSD system with four M.2 NVMe bays, adaptive active cooling, dedicated PD power, and OS-managed RAID support.
SSDs sold separately
Software RAID ready
Adaptive fan control
In stock: 95
4
M.2 NVMe bays
32TB
Possible total capacity
3200MB/s
RAID 0 workflow speed
Active
Adaptive fan cooling
The decision
Stop buying storage as sealed capacity.
A single external SSD is easy until the project grows. QuadDrive lets you keep the enclosure, change the SSDs, and rebuild capacity around the next job.
Better value than traditional solutions
Four bays without four little boxes.
QuadDrive replaces a desk full of single-drive enclosures with one USB4 system: fewer host ports, one power plan, active cooling, and software RAID options when the job needs speed or redundancy.
One 4-bay USB4 enclosure
- One high-speed host data link
- Dedicated USB-C PD power input
- Adaptive active fan cooling
- OS-managed RAID 0/1/5/6/10 support
- Launch price: $199
2 dual-drive enclosures
- More cables and more desk clutter
- Usually lower total bay count
- Often 2280-only drive support
- Higher cost for the same expansion plan
- Typical cost: about $119 x 2

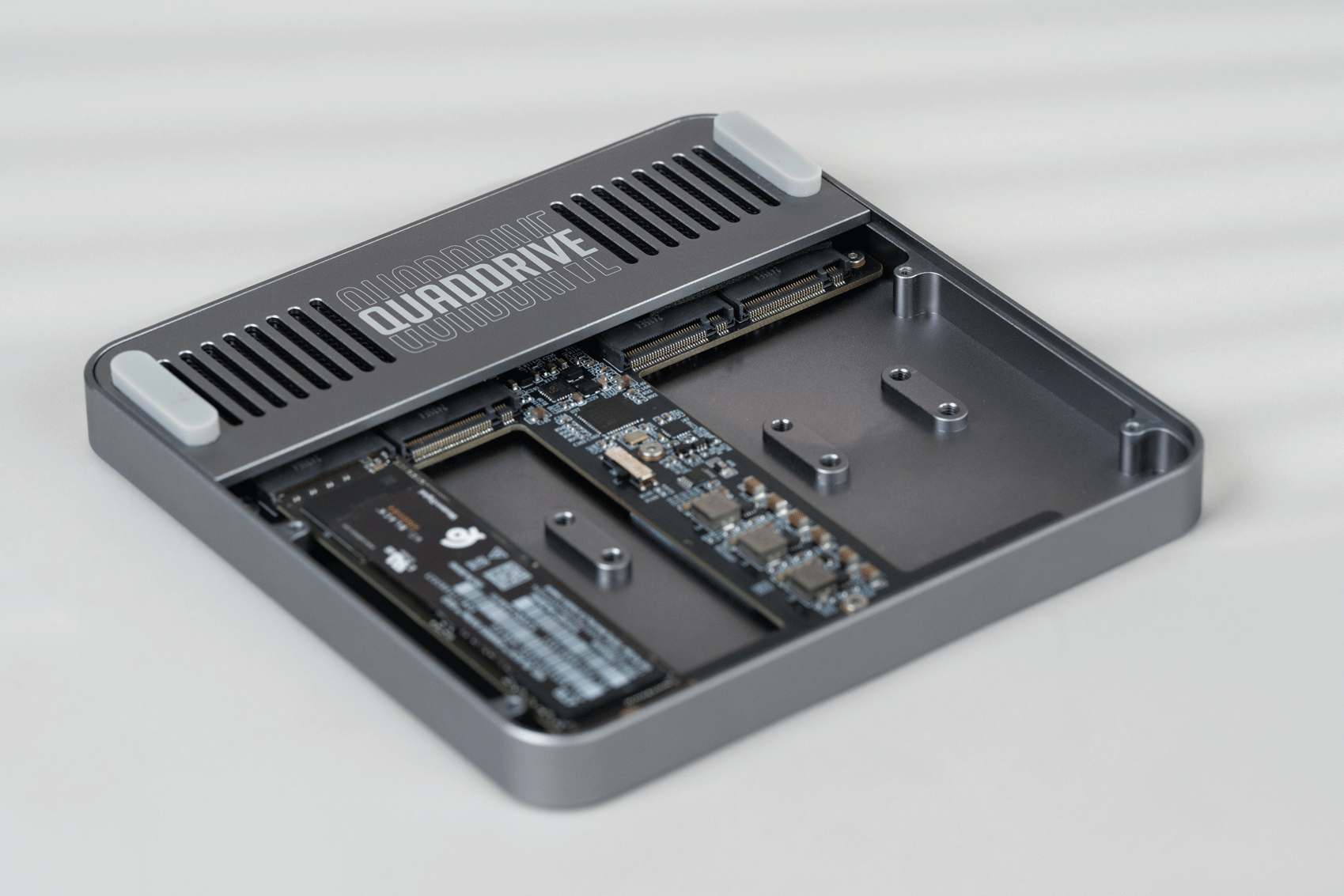

Expandable by design
Start with one drive. Grow to four when the work earns it.
Install any combination of 1, 2, 3, or 4 M.2 NVMe SSDs. Use the drives you trust, expand bay by bay, and keep the same compact enclosure on your desk or in your kit.
1 SSD
2 SSDs
4 SSDs
Video editors and creators
Keep camera media, proxy caches, render files, and export staging on fast removable NVMe storage without buying sealed capacity every time.
Photographers and field teams
Ingest cards, stage backups, and carry a compact multi-drive system that can grow by replacing only the SSDs.
Labs, IT, and developers
Swap drives, test file systems, clone data sets, and configure software RAID without being locked into a hardware RAID controller.
Trusted by creators
Real review. Real comments. Real storage pain.
QuadDrive started with builders, reviewers, and Kickstarter supporters asking for one compact enclosure that can scale with the drives they already trust.
“ This is EXACTLY what I've been looking for.
Tech Guy Beau
Tech reviewer and content creator
Thunderbolt-class USB4

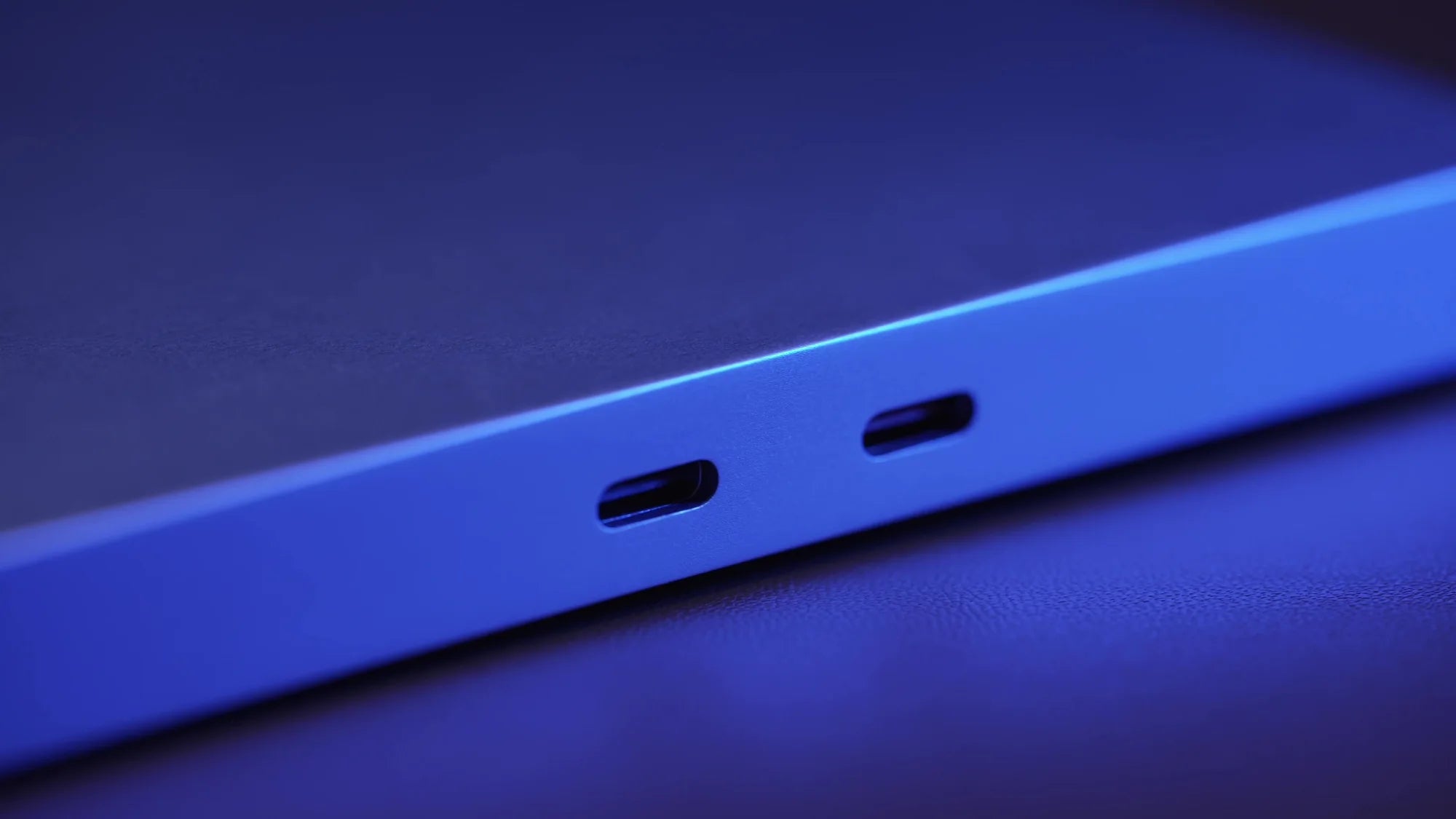

One link for fast data. One PD input for stable power.
The data-side USB-C port connects to USB4 or Thunderbolt 3/4 hosts. The dedicated USB-C PD input keeps multi-drive operation fed by the included 65W adapter.
1600MB/s
Single NVMe
3200MB/s
Multi-drive workflows
Adaptive cooling design
A thin enclosure that still respects sustained work.
Four NVMe drives can generate heat under long transfers. QuadDrive uses an aluminum body, vented top cover, and adaptive fan speed control to help keep sustained workloads stable.
Fan
Adaptive speed control
Aluminum
Rigid thermal chassis

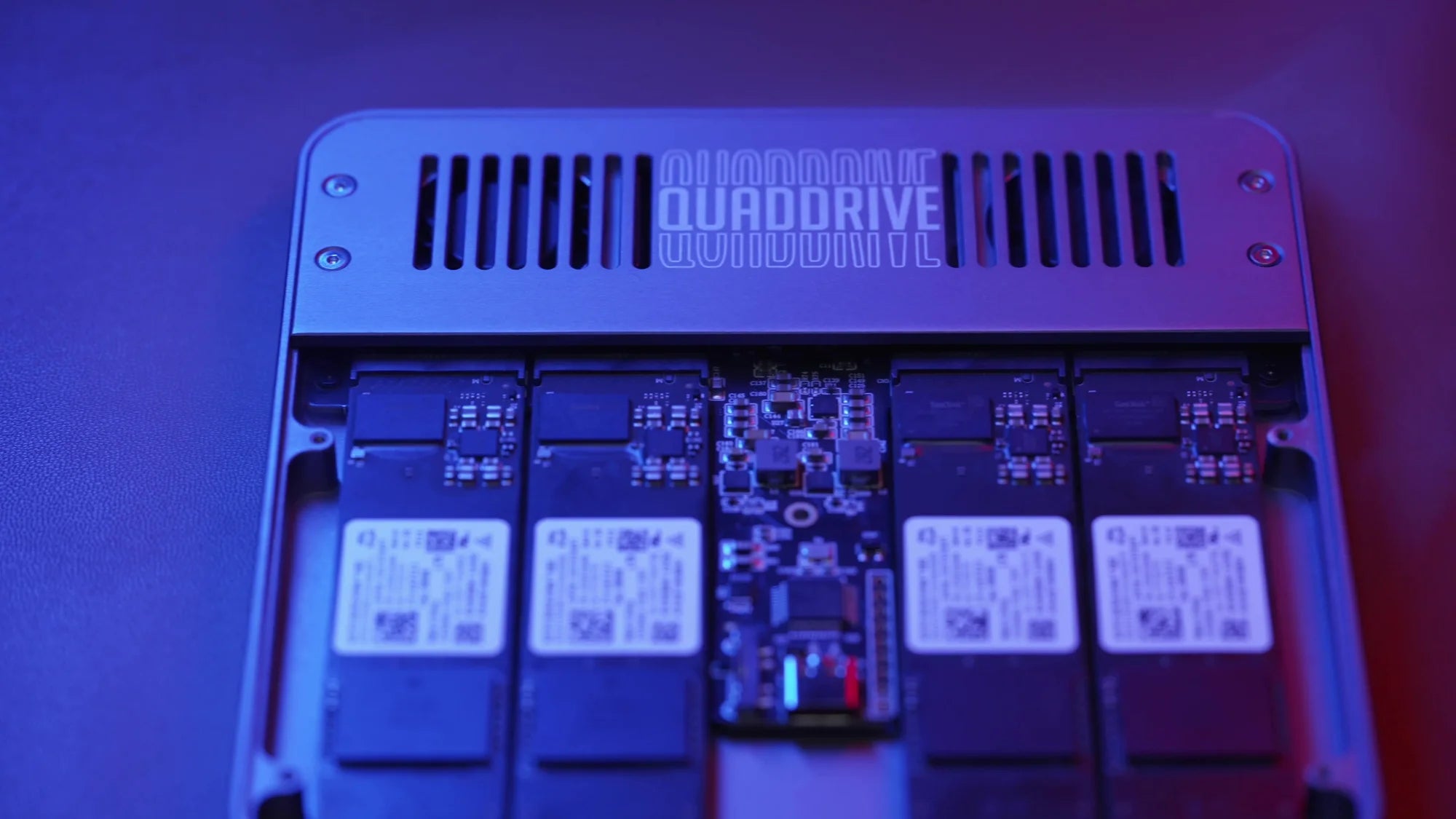

JBOD or software RAID
Choose speed, redundancy, or separate project drives.
QuadDrive exposes the drives for flexible operating-system managed storage. Use simple separate volumes, stripe for speed, mirror for redundancy, or build a software RAID plan in macOS, Windows, or Linux.
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
Before you buy
QuadDrive is right for you if these three things are true.
The best buyer already has NVMe SSDs, or wants to choose them independently instead of paying for a sealed drive configuration.
USB4 or Thunderbolt host
Best performance requires a high-speed USB4 or Thunderbolt 3/4 port.
M.2 NVMe SSDs
Supports 2230, 2242, and 2280 NVMe SSDs. SATA M.2 drives are not the target.
Two USB-C connections
Use one cable for data and one USB-C PD input for power.

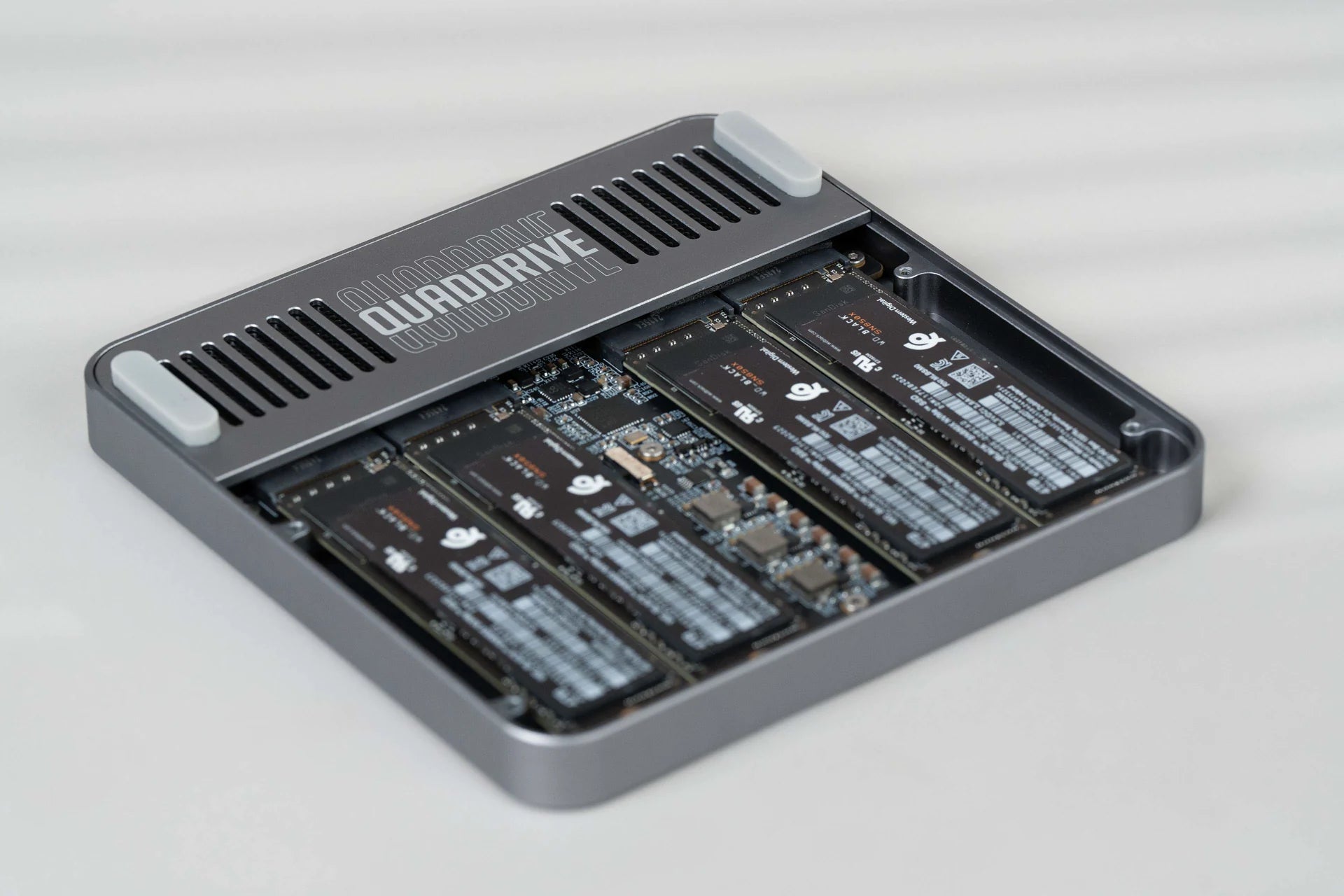

What arrives
The enclosure foundation. You bring the SSD plan.
- QuadDrive 4-bay USB4 NVMe enclosure
- 65W USB-C PD adapter included in the launch bundle
- Use your own 1-4 M.2 NVMe SSDs
- Gray and Silver finishes
Feature matrix
The details that make it a system, not a box.
Technical snapshot
The important specs, without the scavenger hunt.
Host protocolUSB4, Thunderbolt 4, Thunderbolt 3, USB 3.x, USB 2.0
Internal link4 x PCIe 4.0 x1, up to 16Gbps per drive
SSD form factorsM.2 2230 / 2242 / 2280 NVMe SSDs
Capacity planUp to 32TB total with four 8TB SSDs
RAIDOS-managed software RAID: RAID 0, 1, 5, 6, and 10
ControllerASMedia ASM2464PDX
Thermal designAluminum enclosure, vented top cover, adaptive fan speed control
PowerUSB-C PD 3.0 input; 65W adapter included
Size127mm x 127mm x 12.5mm
FAQ
Answers that remove purchase friction.
Are SSDs included?
No. QuadDrive is the enclosure system. You choose and install your own M.2 NVMe SSDs.
Can I use fewer than four SSDs?
Yes. QuadDrive works with any combination of 1, 2, 3, or 4 NVMe SSDs, so you can expand later.
Does it need external power?
Yes. QuadDrive uses one USB-C data link and one USB-C PD power input. The launch bundle includes a 65W USB-C PD adapter.
Does it support RAID?
Yes, through software RAID managed by your operating system. macOS Disk Utility, Windows Storage Spaces or Dynamic Disks, and Linux mdadm can be used depending on your setup. QuadDrive does not use proprietary hardware RAID firmware.
Does QuadDrive have a fan?
Yes. QuadDrive uses adaptive active cooling with fan speed control, a vented top cover, and an aluminum enclosure to help support sustained multi-drive transfers.
What host should I use?
For the best speed, use USB4 or Thunderbolt 3/4. Plain USB-C ports may work at lower USB speeds and will not represent the full QuadDrive experience.
Ready to build
Order the enclosure. Choose the SSDs. Keep the system growing.
QuadDrive
$199.00
