QuadDrive: A 4-Bay USB4 SSD Drive Enclosure

QuadDrive: A 4-Bay USB4 SSD Drive Enclosure

$199.00 USD
$299.00 USD $199.00 USD
Sale Sold out
Shipping calculated at checkout.
Color: Gray
Power Adapter
View full details

The Ultimate 4-Bay USB4 SSD Enclosure

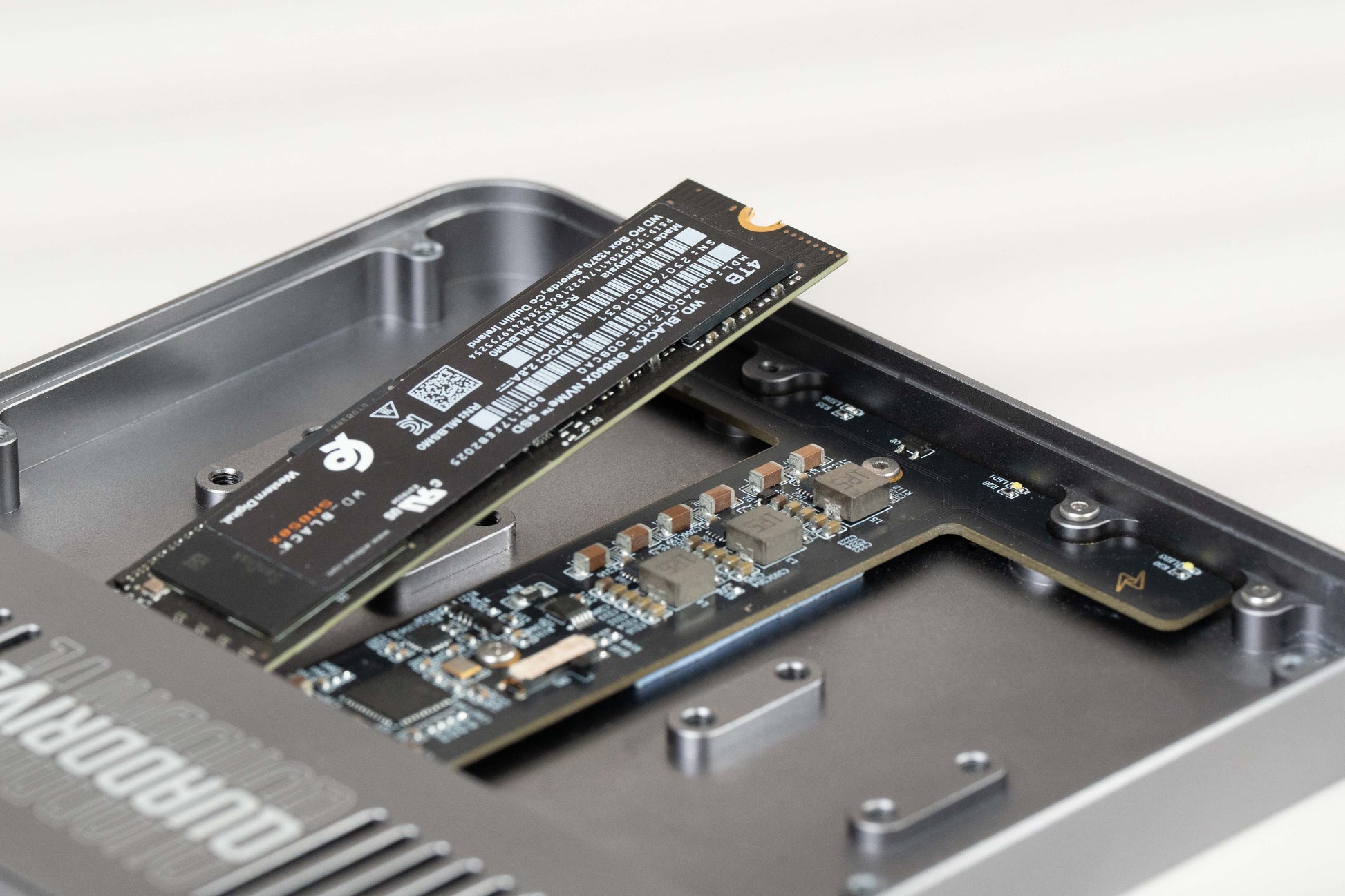

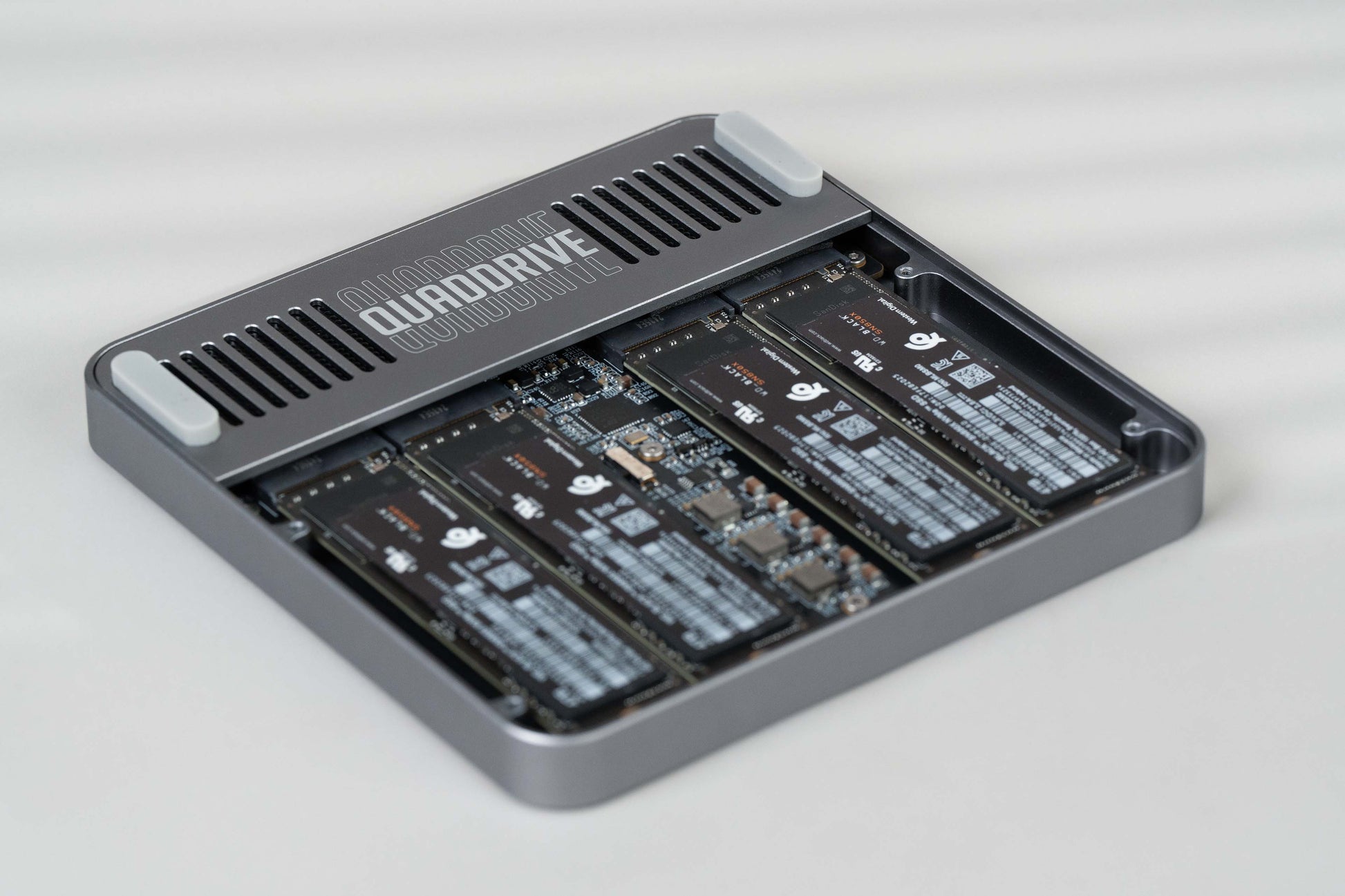

4 NVMe SSDs
Expand your storage instantly.
USB4 up to 3200MB/s
Real-world editing and transfer speed.

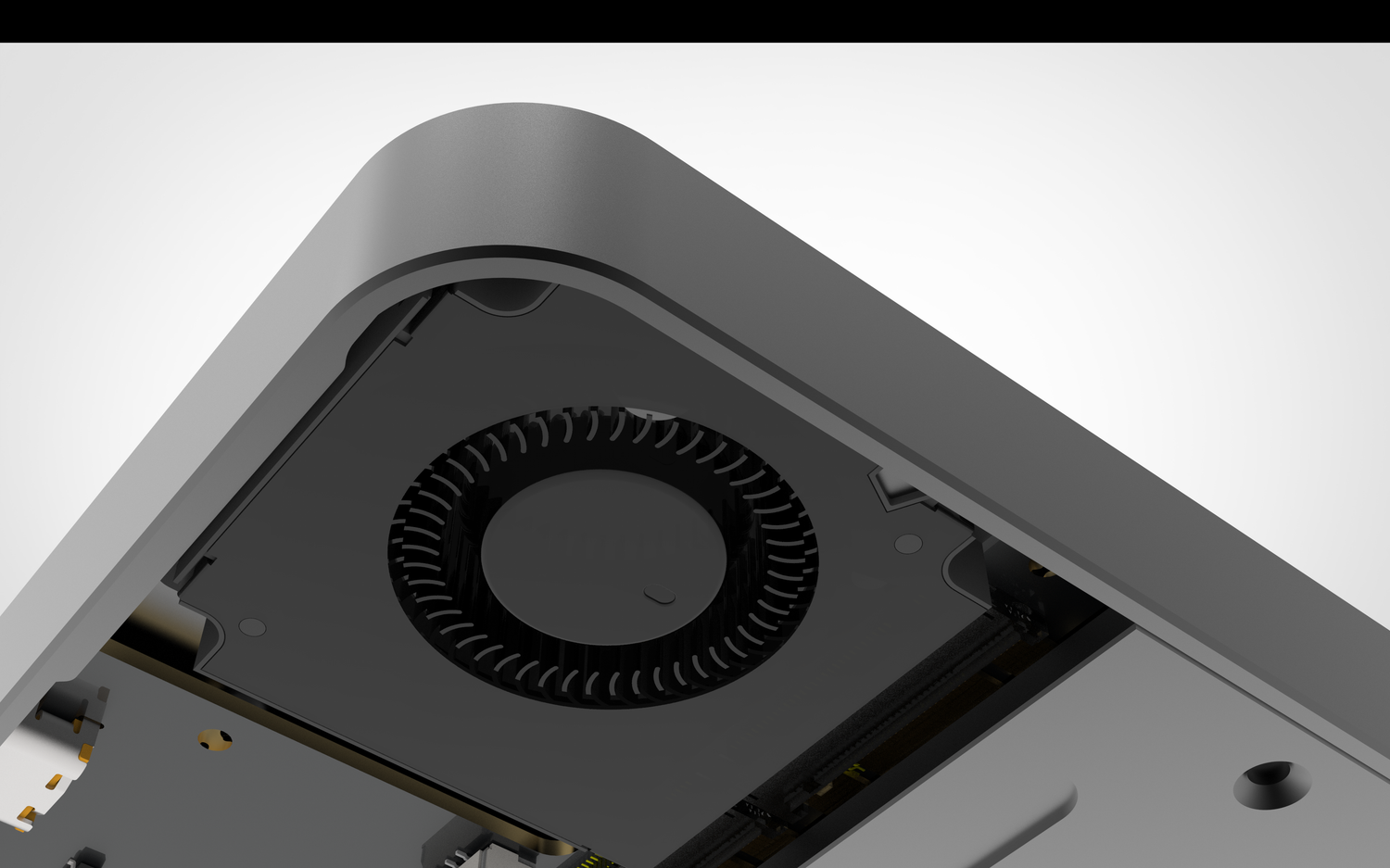

Active Cooling System
Stable performance under heavy load.
RAID Support
RAID 0/5/10 for speed, redundancy, or both.
60W USB-PD Input
Power delivery & power-bank support.

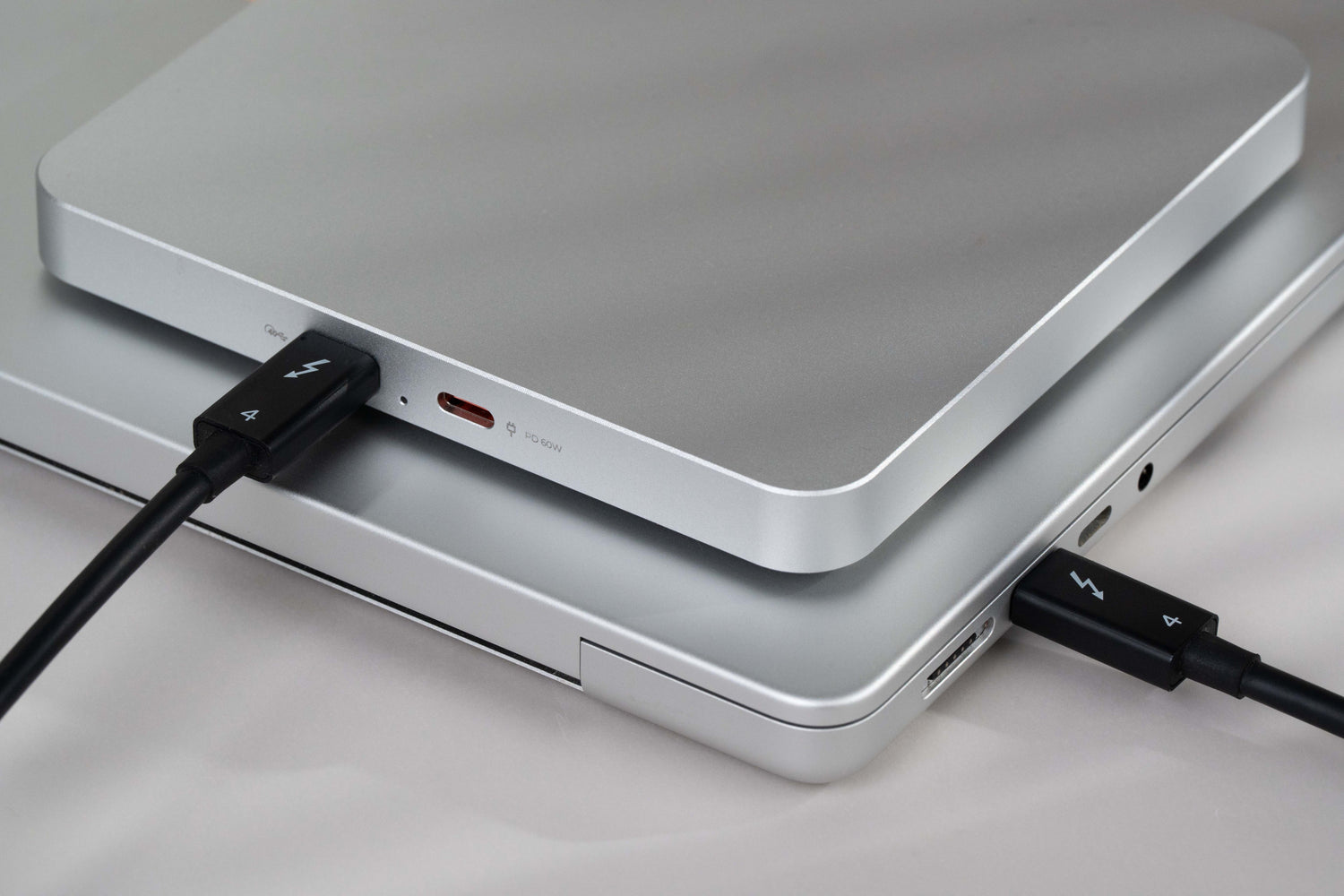

All USB-C
One reversible cable for data & power.
ASMedia ASM2464
USB4 bridge controller optimized for NVMe.

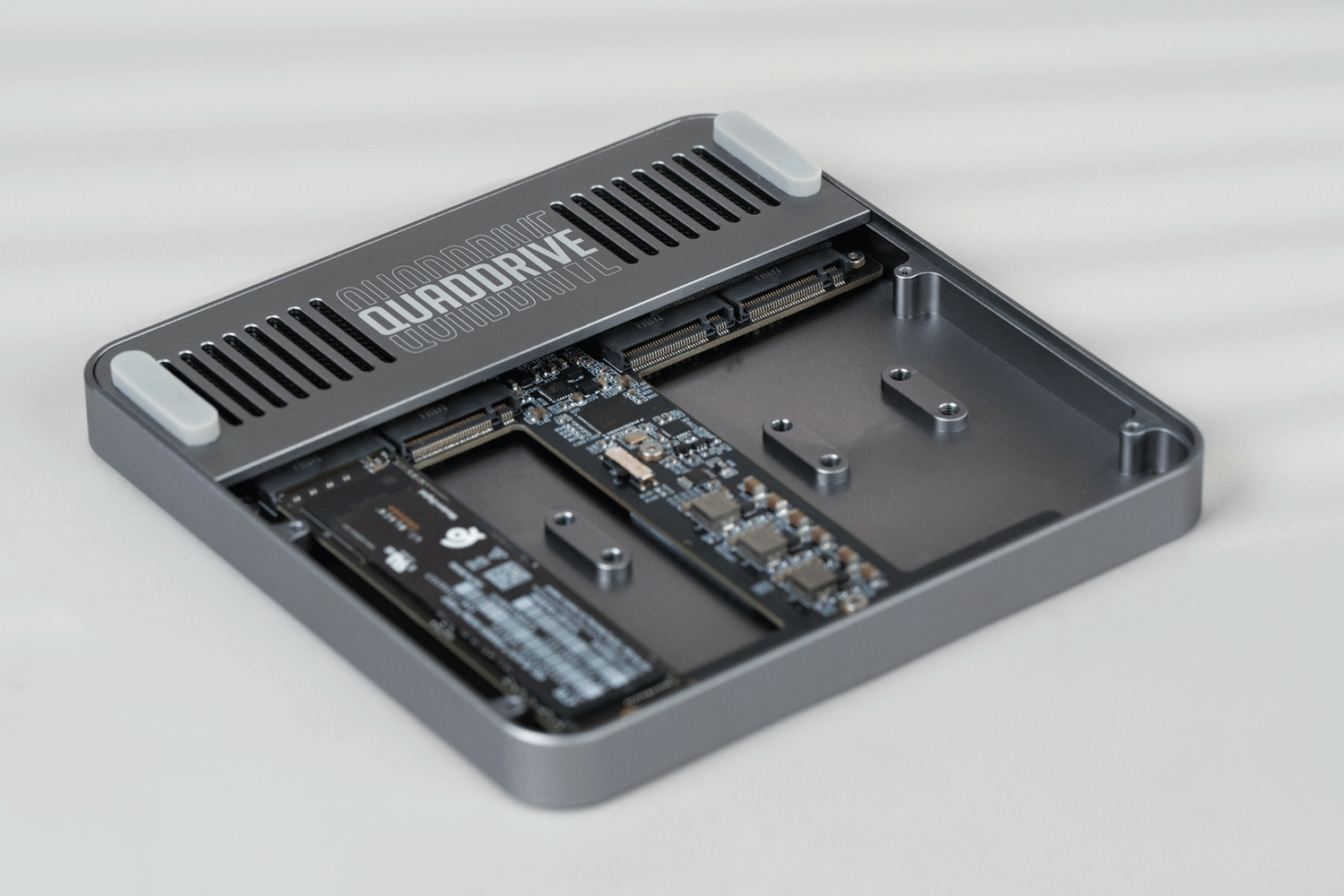

CNC Uni-Body
Precision-milled aluminum chassis.

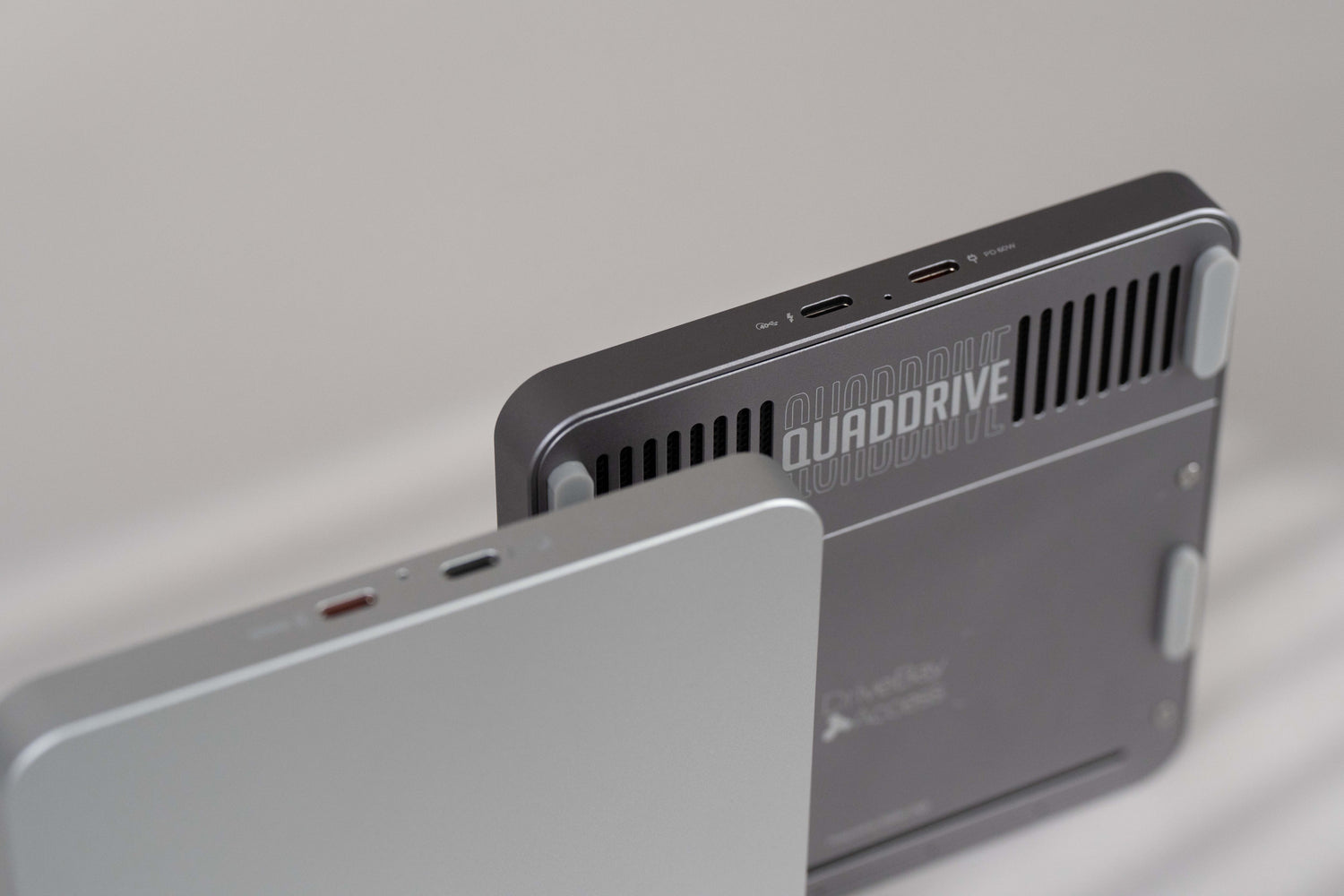

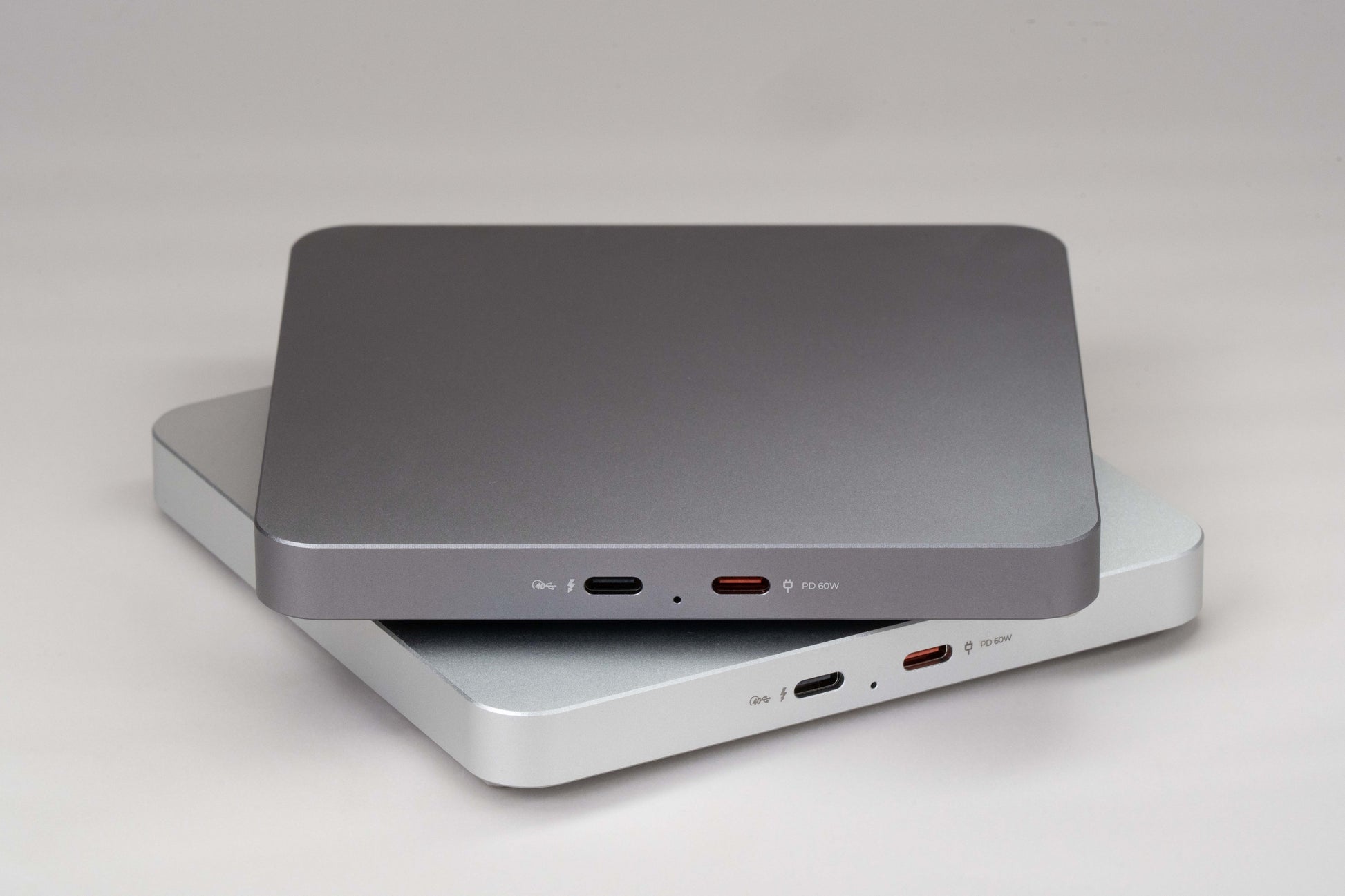

2 Colors Available
Choose the finish that fits your setup.
Wide Compatibility
Thunderbolt 3/4 / USB 2.x/3.x & USB4

Perfect for

Video editors
Software engineers
Photographers
Gamers
Creators with heavy data workflows

Real-World 4K Editing Performance

Single SSD in Thunderbolt/USB4
With sustained speeds up to 1600 MB/s from a single NVMe SSD, QuadDrive already keeps up with demanding 4K timelines and multi-cam edits.
Relative speed 1600 MB/s
Up to 12× 4K30P ProRes 422 HQ streams
Up to 6× 4K60P ProRes 422 HQ streams
Multiple SSDs in Thunderbolt/USB4
Populate more bays or use RAID 0/5/10 to reach up to 3200 MB/s. Perfect for high-end cinema cameras, heavy VFX work and complex multi-camera timelines.
Relative speed 3200 MB/s
Up to 24× 4K30P ProRes 422 HQ streams
Up to 12× 4K60P ProRes 422 HQ streams
Performance in USB3.x/USB2.0 Modes
Over USB3.x or USB2.0, performance is limited by your host’s interface. It’s great for backups, shuttling projects and lighter edits.
Relative speed USB3.x / USB2.0
Around 3–4× 4K30P ProRes 422 HQ streams
(exact number depends on your USB controller and system)

Why QuadDrive?

Four SSDs. Endless Possibilities.

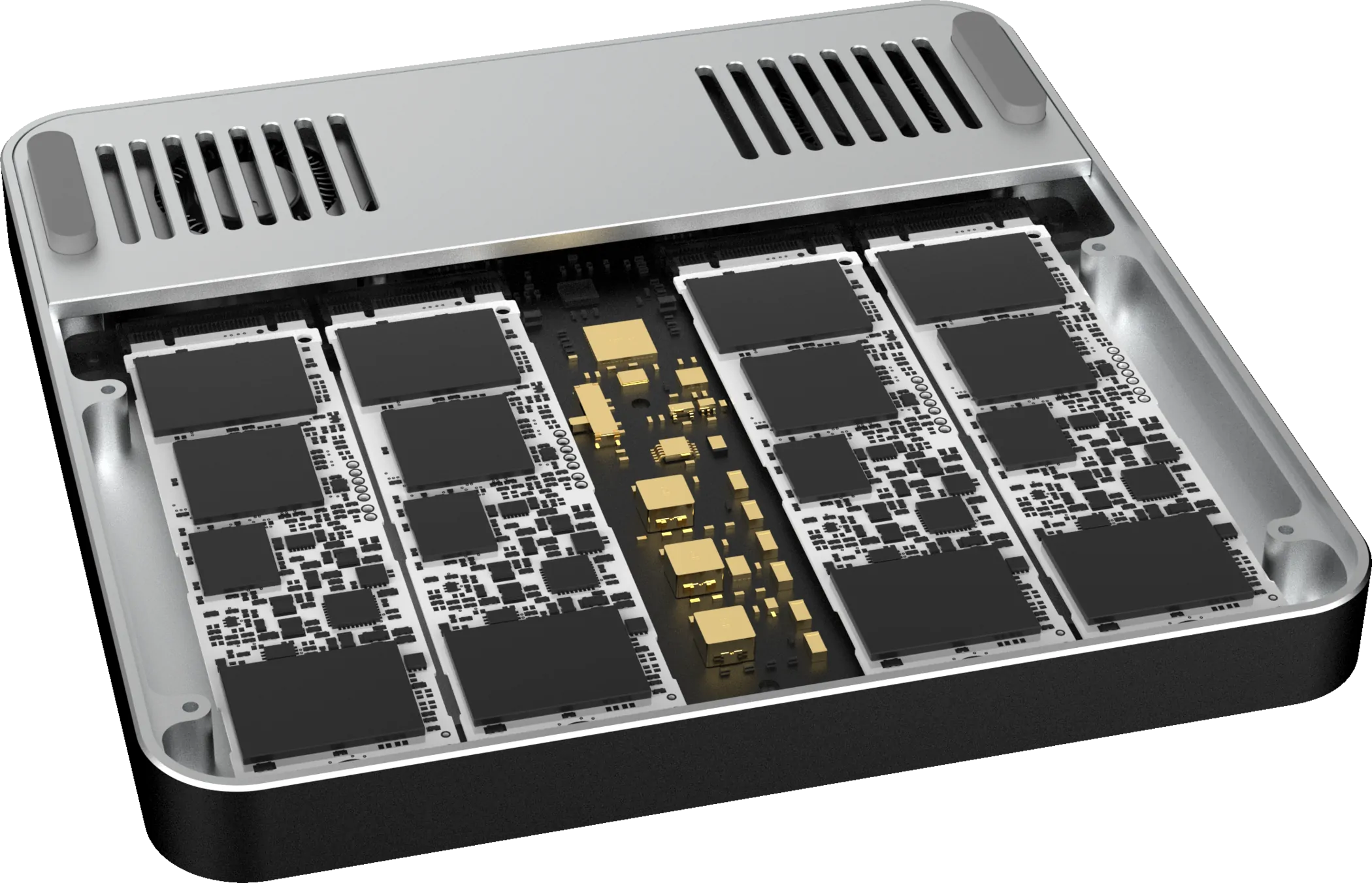

Turn up to four NVMe SSDs into one ultra-fast, high-capacity external storage solution for creators, engineers, and power users.

USB4 Speed Up to 3200MB/s

Experience true next-gen bandwidth with full USB4 performance — perfect for 4K/6K video editing, game libraries, and large data workflows.

Designed for Reliability & Longevity

Active cooling, aerospace-grade aluminum chassis, and optimized thermal airflow ensure stable performance even under extended workloads.

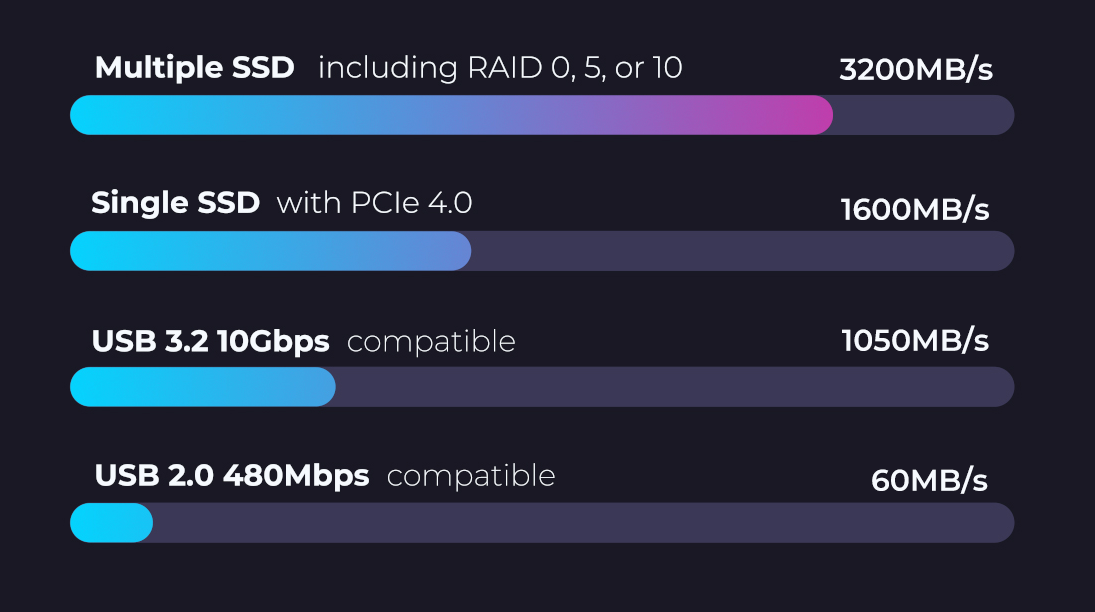

Legacy USB Compatibility

Multiple SSD
including RAID 0, 5, or 10
3200MB/s
Single SSD
with PCIe 4.0
1600MB/s
USB 3.2 10Gbps
compatible
1050MB/s
USB 2.0 480Mbps
compatible
60MB/s

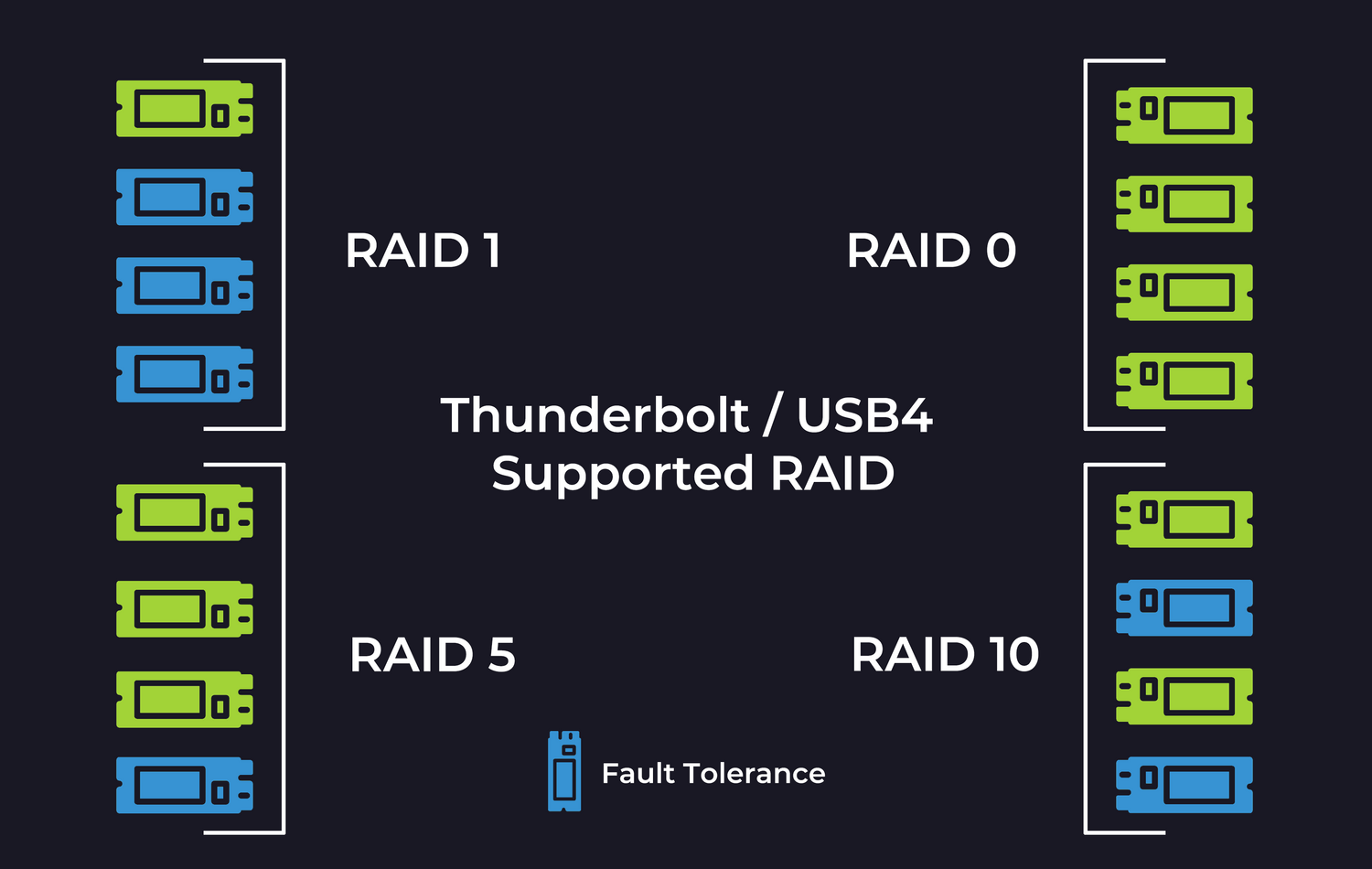

Thunderbolt / USB4 Supported RAID

Flexible RAID configurations for speed, capacity, and fault tolerance.

RAID 1
RAID 0
RAID 5
RAID 10
Thunderbolt / USB4 Supported RAID
Blue drives indicate fault-tolerant parity / mirrored data.

Better Value Than Traditional Solutions

Compare QuadDrive with common USB-only and Thunderbolt-only enclosures.

4x USB-only Enclosure
Passive USB storage dock
  • Ports occupied 4
  • Total capacity Up to 32 TB
  • Cooling design Passive only
  • Connection USB 10 Gbps
  • Software RAID Not supported
  • Supported sizes 2280 only
  • Typical price $59 × 4 ≈ $236
QuadDrive USB4 Enclosure
Your all-in-one 4-bay SSD hub
  • Ports occupied 1
  • Total capacity Up to 32 TB
  • Cooling design Adaptive active cooling
  • Connection USB2.x/3.x/4 40 Gbps & TB3/4 compatible
  • Software RAID RAID 0/1/5/10 via OS
  • Supported sizes 2230 / 2242 / 2280
  • Introductory price $199
2x TB-only Enclosure
Thunderbolt-focused solution
  • Ports occupied 2
  • Total capacity Up to 16 TB
  • Cooling design Limited active cooling
  • Connection Thunderbolt 3/4 only
  • Software RAID RAID supported
  • Supported sizes 2280 only
  • Typical price $119 × 2 ≈ $238

Trusted by Creators

Backed by 100+ Kickstarter supporters and trusted by professionals worldwide.

“
This is EXACTLY what I've been looking for (and so should you!).
Tech Guy Beau
Tech Guy Beau
Tech reviewer & content creator
Kickstarter
100+ backers
Proven in real-world workflows before launch, with creators who still rely on QuadDrive today.
Loved by professionals
From video editors and software engineers to photographers and gamers, QuadDrive has become the go-to hub for high-performance storage.
@lbenegas
If it had a network interface, it would be the Thanos of storage devices.
@kingmaniactech
This is gonna be in every techtuber's arsenal. This is dope AF.

Why We Built QuadDrive

QuadDrive was born from real frustrations shared by creators and professionals everywhere.

Most SSD enclosures were made of lightweight plastic, overheated easily, or couldn’t keep data safe. Internal Mac storage remained extremely expensive, while USB 2.0 / 3.x drives were far too slow — and couldn’t even be used for RAID protection.

At the same time, NVMe prices rose sharply, especially for 8TB models. Many of us already had spare SSDs lying around, yet no good way to combine them into reliable, high-speed storage.

So we designed QuadDrive: a durable, all-aluminum USB4 enclosure built for speed, stability, and real-world workflows — and for making the most of the SSDs you already own.

Our Promise to You

Designed for professionals, backed by real people who stand behind the product.

Fast support from real engineers
Talk directly with the engineers who build QuadDrive—not scripted call centers. We diagnose and solve issues with you, quickly.
1-year hardware warranty included
Every unit is covered for 12 months against hardware failure under normal use. No hidden conditions.
Replacement-only policy
If a covered defect appears, we replace the unit directly. No repair queues. No waiting weeks. Just a new unit.

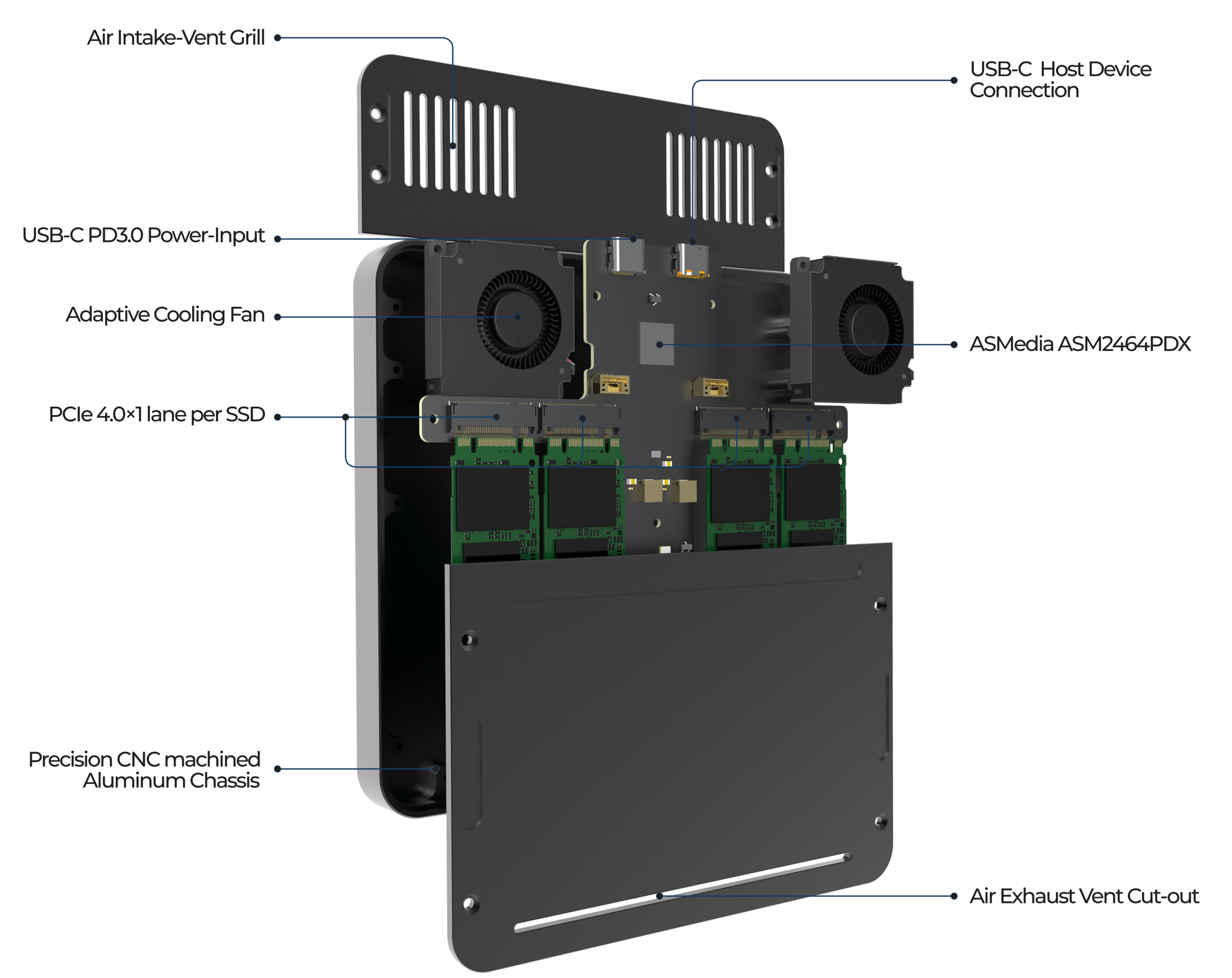

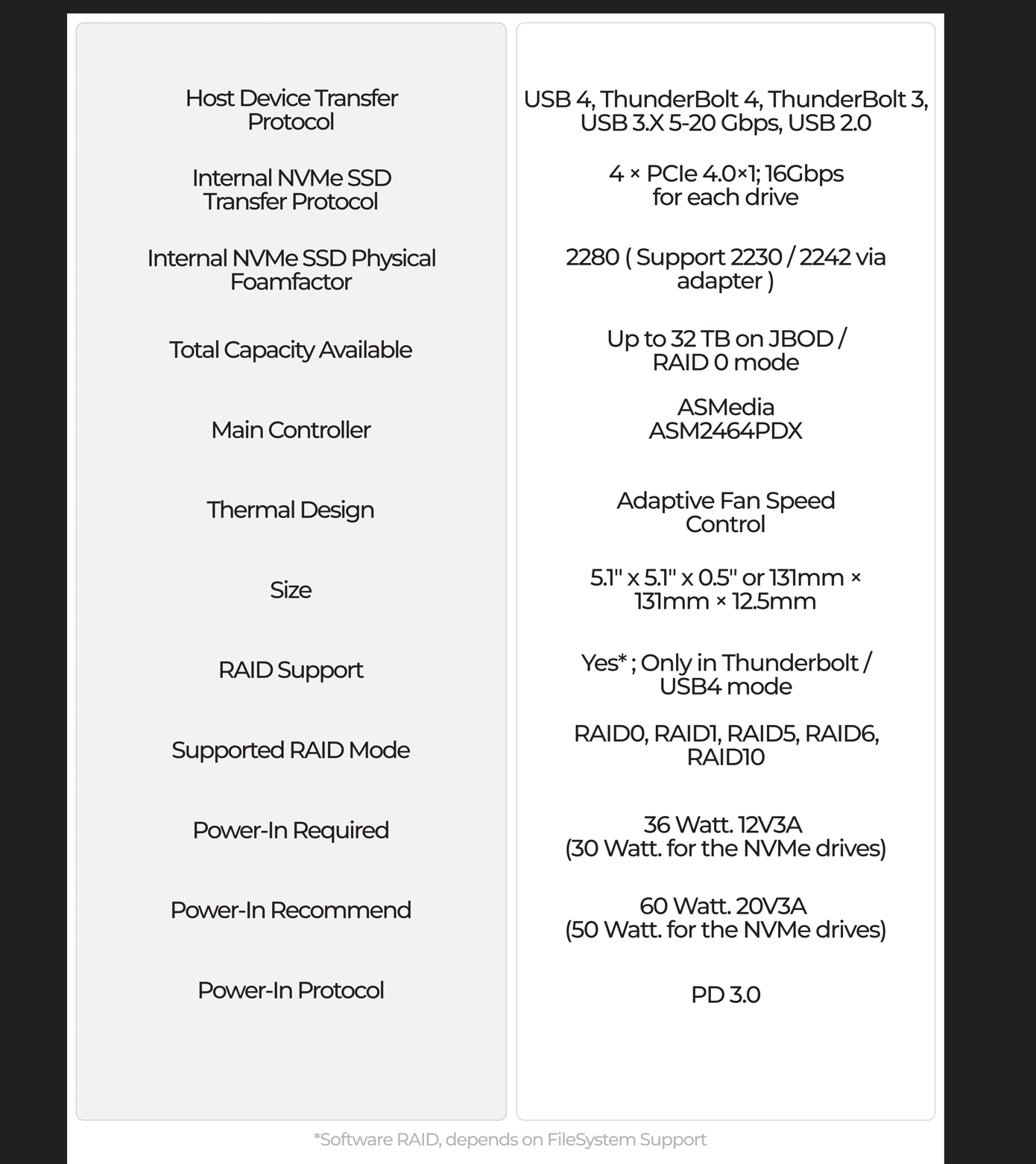

Technical Specifications

Host Device Transfer Protocol
USB4, Thunderbolt 4, Thunderbolt 3,
USB 3.x 5–20 Gbps, USB 2.0
Internal NVMe SSD Transfer Protocol
4 × PCIe 4.0 ×1; 16 Gbps for each drive

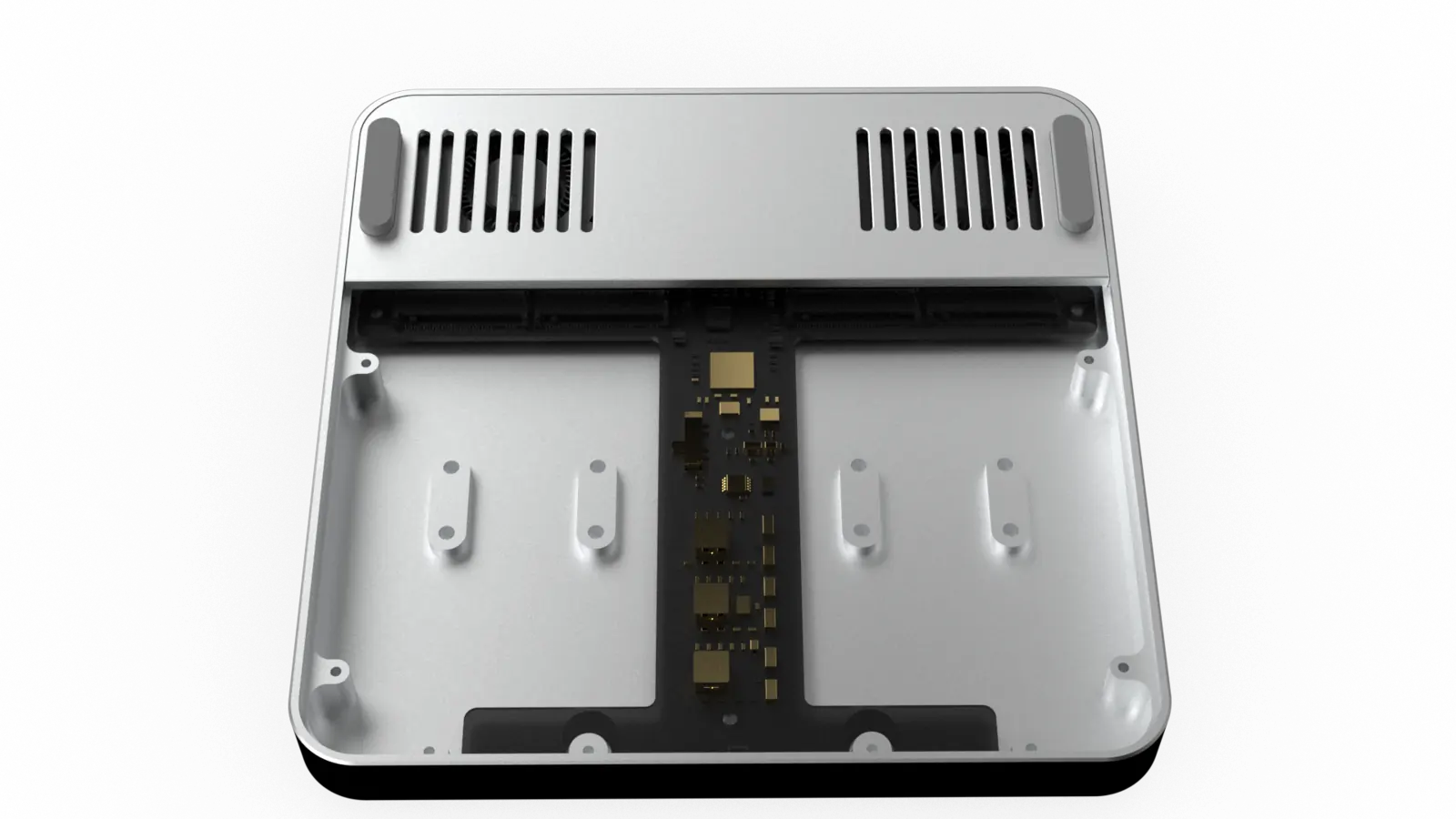

Internal NVMe SSD Physical Form Factor
2230 / 2242 / 2280
Total Capacity Available
Up to 32 TB on JBOD / RAID 0 mode
Main Controller
ASMedia ASM2464PDX
Thermal Design
Adaptive fan speed control
Size
5.0" × 5.0" × 0.5"
(127 mm × 127 mm × 12.5 mm)
RAID Support
Yes*; only in Thunderbolt / USB4 mode
Supported RAID Mode
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Power-In Required
36 W (12 V 3 A)
30 W for NVMe drives
Power-In Recommended
60 W (20 V 3 A)
50 W for NVMe drives
Power-In Protocol
PD 3.0
*Software RAID; depends on file system support.

QuadDrive FAQ

Will QuadDrive work with my Mac or PC?

Yes. QuadDrive works with most modern USB-C / USB4 / Thunderbolt systems, including:

  • Apple Silicon Macs
  • Intel Macs (8th & 9th Gen)
  • Intel 12th–15th Gen platforms with USB4 or Thunderbolt ports
  • Intel 8th–9th Gen platforms with Thunderbolt 3 ports
  • AMD 8000–9000 series systems with USB4 support
    Note:
    Intel 10th and 11th Gen processors do not support high-speed USB-C connectivity, so QuadDrive cannot reach full 40Gbps performance on those systems.

Does QuadDrive require external power?

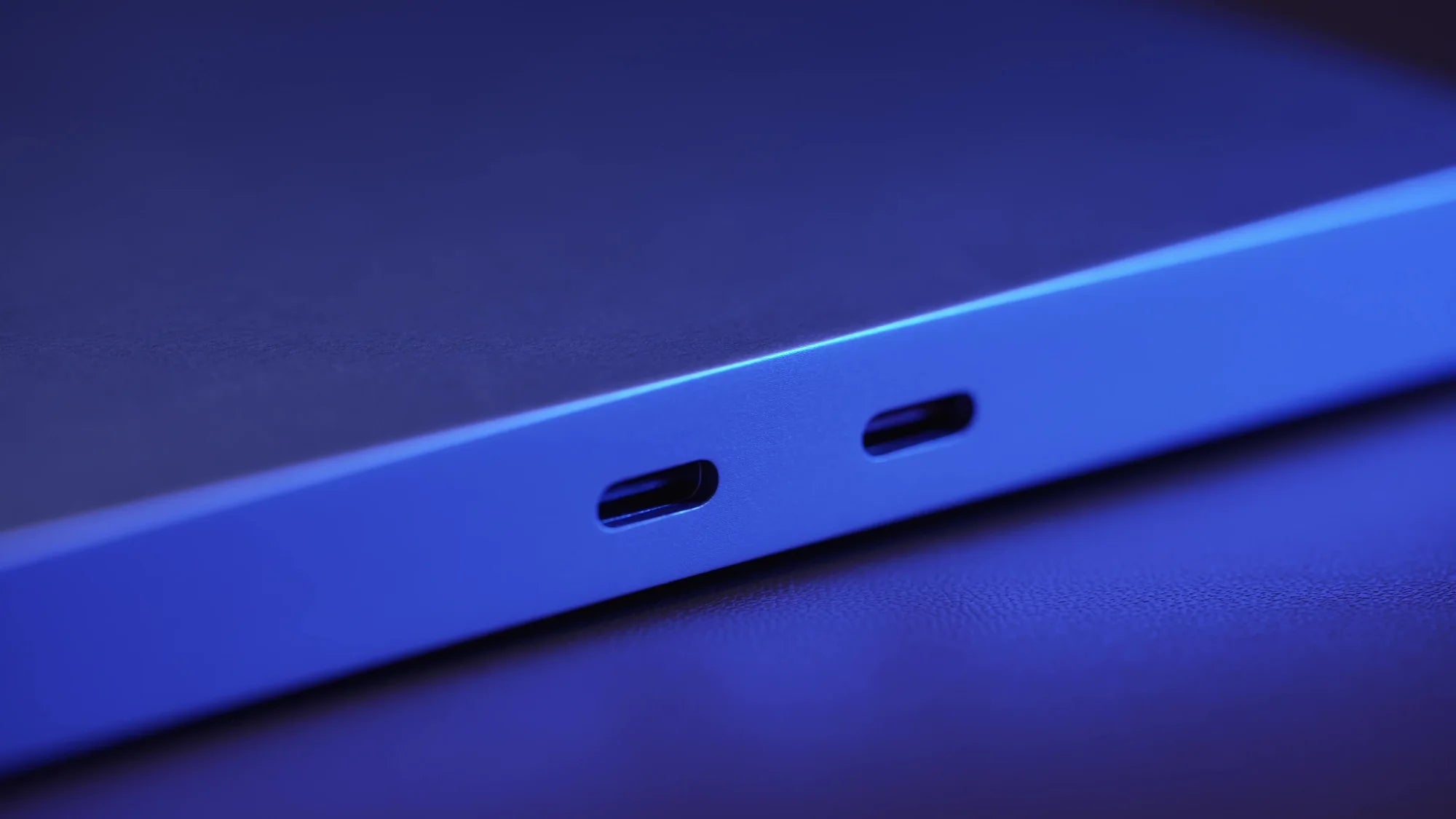

Yes. QuadDrive needs two USB-C connections for normal operation:

  1. One PD power input
  2. One USB-C data link

It cannot run on a single cable, even with fewer SSDs installed.

This design ensures stable voltage and full-speed performance for all four drives.

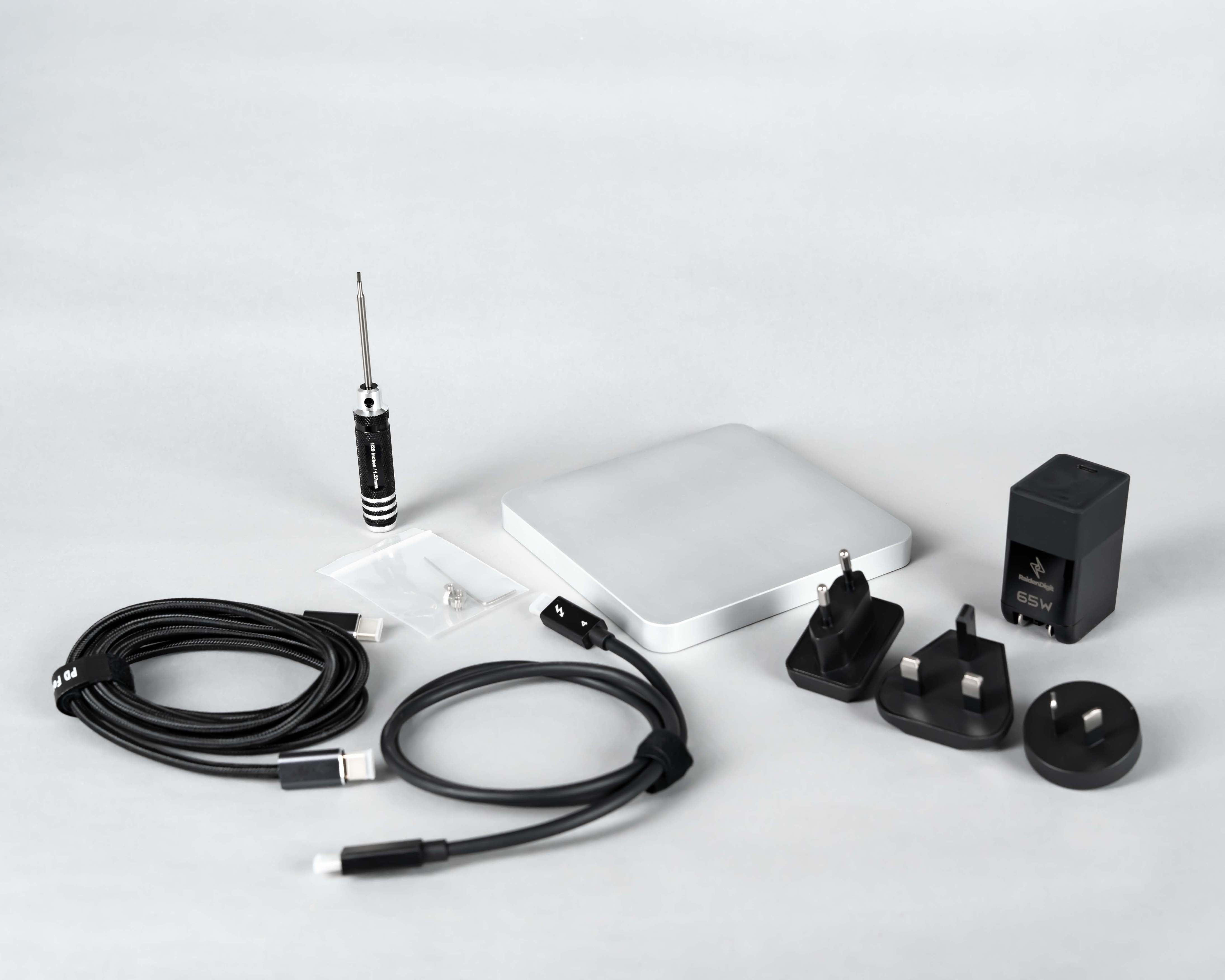

For best results, we recommend using our 65W PD Power Adapter, which provides clean and reliable power and includes international plug options.

Can I use fewer than 4 SSDs?

Yes. QuadDrive works with any combination of 1, 2, 3, or 4 NVMe SSDs.

You can expand capacity at any time.

Does QuadDrive support RAID?

Yes. QuadDrive supports RAID 0, 1, 5, and 10, using your operating system’s built-in software RAID tools (macOS, Windows, Linux).

How does software RAID work?

QuadDrive does not use hardware RAID.

Instead, RAID is managed by your operating system:

  • macOS → Disk Utility (Soft RAID)
  • Windows → Storage Spaces / Dynamic Disks
  • Linux → mdadm

Software RAID offers several advantages:

  • More flexibility and easier recovery
  • No vendor-locked RAID controller
  • Better compatibility across systems
  • Performance that matches or exceeds hardware RAID at USB4 speeds

You can freely switch SSD brands/capacities, and rebuild or reconfigure RAID without relying on proprietary firmware.

Does QuadDrive work with PCIe Gen3 SSDs?

Yes. Gen3 SSDs are fully supported, though Gen4 models provide the best performance.
